3SM offers a diverse range of valves from reputed manufacturer from all over the world and has become one of the most trusted and leading suppliers in the market. Our valves are specialized in the oil sector, gas sector, power generation, chemical industry, mining and have supplied ball, gate, globe, check, butterfly, plug, choke, needle valves both to national & international customers.Also Our range of steel piping products is one of the world's largest, and is sourced only from carefully selected manufactures. We supply Steel Pipes, Fittings, Flanges, Valves and many other piping products in any size or grade as per the standard and requirements.

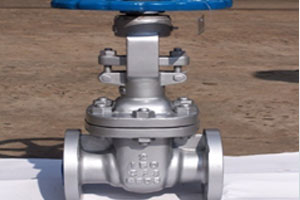

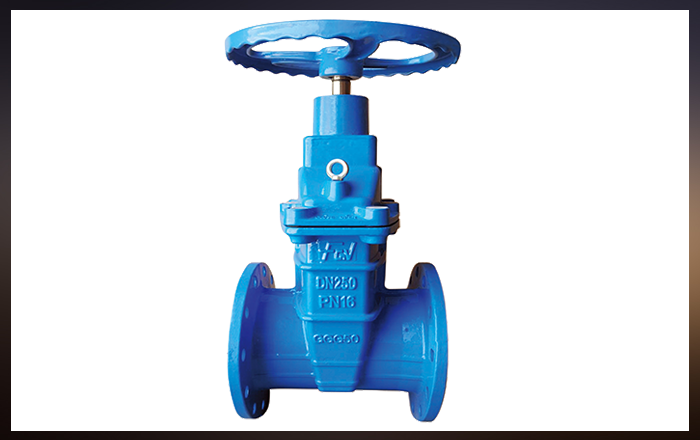

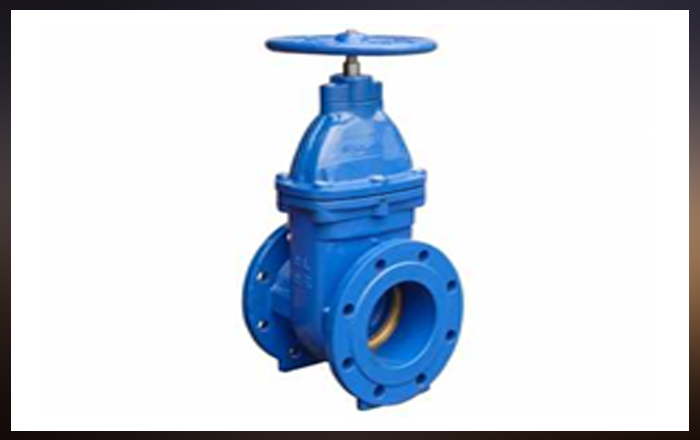

Gate valves are widely used for all types of applications and are suitable for both above ground & underground..
Gate valves are widely used for all types of applications and are suitable for both above ground & underground installation. not least for underground installations it is paramount to choose the right type of valve to avoid high replacement costs
| Cast and Forged Steel Gate valves |
| Cast Steel : API 600, BS1414, B1873 & BS1868 |
| ANSI Class up to 1500lbs in RF and RTJ Connection |
| Sizes : 2" - 48" |
| Forged Steel |
| API 602 & BS5352 |
| ANSI Class rating up to 1500lbs |
| Sizes : 1/2" - 2" |
| Connection in RF, RTJ, NPT and SW |

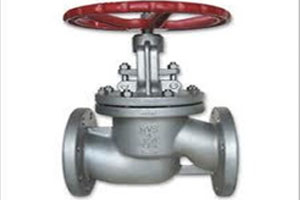

Globe valves are named for their spherical body shape with the two halves of the body being separated by an internal baffle
Globe valves are named for their spherical body shape with the two halves of the body being separated by an internal baffle This has an opening that forms a seat onto which a movable plug can be screwed in to close (or shut) the valve. The plug is also called a disc or disk.
| Cast and Forged Steel Globe valves |
| Cast Steel : API 600, BS1414, B1873 & BS1868 |
| ANSI Class up to 1500lbs in RF and RTJ Connection |
| Sizes : 2" - 48" |
| Forged Steel |
| API 602 & BS5352 |
| ANSI Class rating up to 1500lbs |
| Sizes : 1/2" - 2" |
| Connection in RF, RTJ, NPT and SW |
| Specification | Details |
| Design Standard | API 6A, ASME VIII, API 6FA |
| Pressure/Temperature Chart | ASME B16.34 |
| Face to face Dimension | API 6D, ASME B16.10, |
| Testing Standard | API 6A / ISO 5208 |
| Flange Details | ASME B16.5 / API 6A |
| Size Range | 2 1/16” to 4 1/16” |
| Pressure Classes | 2000 – 10,000 PSI |
| Product Spec Level | PSL 1, 2, 3, 3G & 4 |
| Materials | 4130 / 410 / A487 4C / CA15 / CF8M / Duplex / Super Duplex / Inconel |
| Trims | API Class AA - HH |
| Seats | TCC coated |
| Ends | Flanged / Welded |

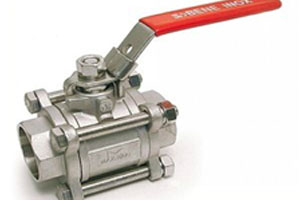

A ball valve is a form of quarter-turn valve which uses a hollow, perforated and pivoting ball to control flow through...
A ball valve is a form of quarter-turn valve which uses a hollow, perforated and pivoting ball to control flow through it It is open when the ball's hole is in line with the flow and closed when it is pivoted 90-degrees by the valve handle.
| Floating Ball to BS5351in reduced and Full Bore execution |
| ANSI Class rating up to 600lbs |
| Sizes : 1/2" - 2" ANSI Class rating up to 1500lbs |
| Sizes : 3" - 12" ANSI Class rating up to 600lbs |
| Connection : RF and RTJ |
| Trunnion mounted to API6D in Reduced and Full Bore execution |
| ANSI Class rating up to 1500lbs |
| Sizes : 2" - 56" |
| Connection : RF and RTJ |
| Specification | Details |
| Design Standard | API 6A, ASME VIII, API 6FA |
| Pressure/Temperature Chart | ASME B16.34 |
| Face to face Dimension | API 6D, ASME B16.10, |
| Testing Standard | API 6A / ISO 5208 |
| Flange Details | ASME B16.5 / API 6A |
| Size Range | 2 1/16” to 4 1/16” |
| Pressure Classes | 2000 – 10,000 PSI |
| Product Spec Level | PSL 1, 2, 3, 3G & 4 |
| Materials | 4130 / 410 / A487 4C / CA15 / CF8M / Duplex / Super Duplex / Inconel |
| Trims | API Class AA - HH |
| Seats | TCC coated |
| Ends | Flanged / Welded |

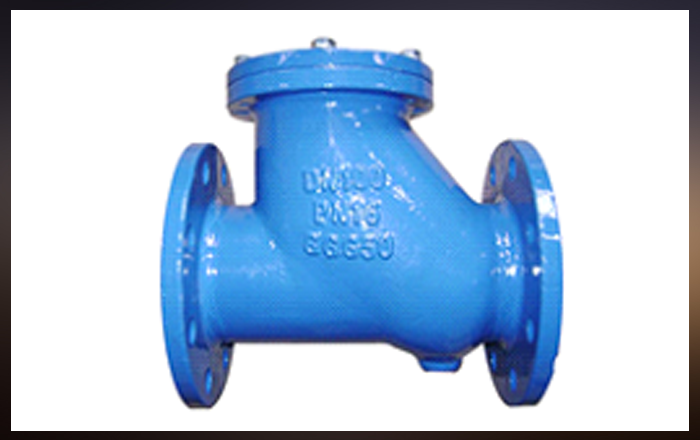

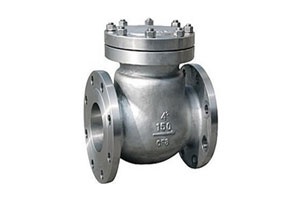

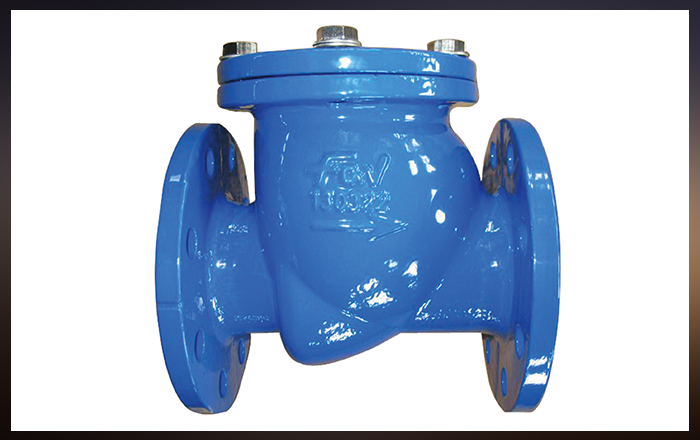

Check valve that closes by fluid pressure to prevent return flow.Swing or non slam type: Cast and Forged Steel ....
Check valve that closes by fluid pressure to prevent return flow.
| Swing or non slam type: Cast and Forged Steel Check valves |
| Cast Steel : API 600, BS1414, B1873 & BS1868 |
| ANSI Class up to 1500lbs in RF and RTJ Connection |
| Sizes : 2" - 56" |
| Forged Steel |
| API 602 & BS5352 |
| ANSI Class rating up to 1500lbs |
| Sizes : 1/2" - 2" |
| Connection in RF, RTJ, NPT and SW |

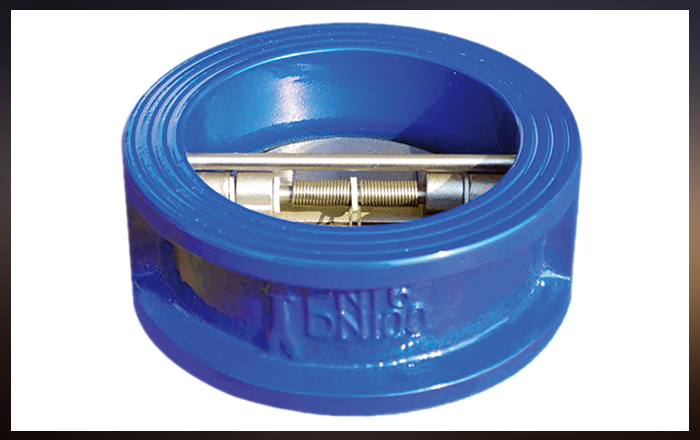

| Wafer Check Valves to API 594, tested to API 598 |
| ANSI Class rating up to 1500lbs |
| Sizes : 2" - 24" |
| Connection in RF, RTJ |
| Specification | Details |
| Design Standard | API 6A, ASME VIII, API 6FA |
| Pressure/Temperature Chart | ASME B16.34 |
| Face to face Dimension | API 6D, ASME B16.10, |
| Testing Standard | API 6A / ISO 5208 |
| Flange Details | ASME B16.5 / API 6A |
| Size Range | 2 1/16” to 4 1/16” |
| Pressure Classes | 2000 – 10,000 PSI |
| Product Spec Level | PSL 1, 2, 3, 3G & 4 |
| Materials | 4130 / 410 / A487 4C / CA15 / CF8M / Duplex / Super Duplex / Inconel |
| Trims | API Class AA - HH |
| Seats | TCC coated |
| Ends | Flanged / Welded |

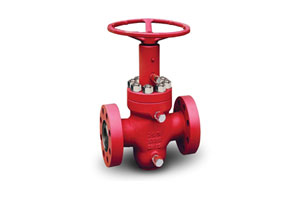

Choke Valves are generally used in naturally aspirated engines with carburetors to supply a richer fuel mixture..
Choke Valves are generally used in naturally aspirated engines with carburetors to supply a richer fuel mixture when starting the engine.
| Swing or non slam type: Cast and Forged Steel Check valves |
| Cast Steel : API 600, BS1414, B1873 & BS1868 |
| ANSI Class up to 1500lbs in RF and RTJ Connection |
| Sizes : 2" - 56" |
| Forged Steel |
| API 602 & BS5352 |
| ANSI Class rating up to 1500lbs |
| Sizes : 1/2" - 2" |
| Connection in RF, RTJ, NPT and SW |
| Wafer Check Valves to API 594, tested to API 598 |
| ANSI Class rating up to 1500lbs |
| Sizes : 2" - 24" |
| Connection in RF, RTJ |
| Specification | Details |
| Design Standard | API 6A, ASME VIII, API 6FA |
| Pressure/Temperature Chart | ASME B16.34 |
| Face to face Dimension | API 6D, ASME B16.10, |
| Testing Standard | API 6A / ISO 5208 |
| Flange Details | ASME B16.5 / API 6A |
| Size Range | 2 1/16” to 4 1/16” |
| Pressure Classes | 2000 – 10,000 PSI |
| Product Spec Level | PSL 1, 2, 3, 3G & 4 |
| Materials | 4130 / 410 / A487 4C / CA15 / CF8M / Duplex / Super Duplex / Inconel |
| Trims | API Class AA - HH |
| Seats | TCC coated |
| Ends | Flanged / Welded |

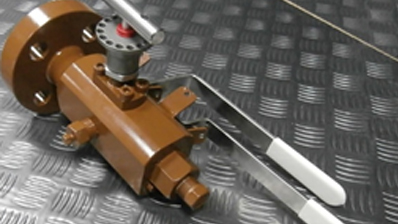

Bestway offer an extensive range of Double Block and Bleed Valves to the Highest Quality and Finish. Our strengths in this product can be shown in the projects
Bestway offer an extensive range of Double Block and Bleed Valves to the Highest Quality and Finish. Our strengths in this product can be shown in the projects we have successfully completed over the years especially in Double Block and Bleed Ball valves (Both soft and metal seated versions).

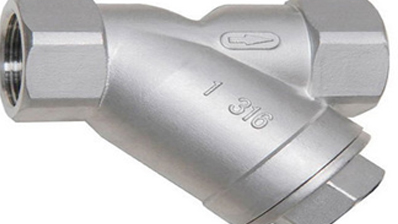

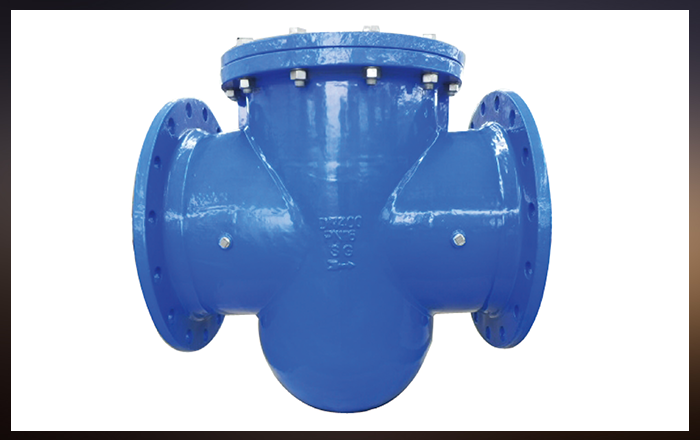

Y strainers are most often used for steam and gases, but are also used for liquids. They have less debris holding capacity and higher pressure drops then..
Y strainers are most often used for steam and gases, but are also used for liquids. They have less debris holding capacity and higher pressure drops then basket strainers,but they can be used in either horizontal or vertical pipe runs where flow is downwards. They can also be fitted with a blow off connection at the end of the branch end that includes a valve, which allows for cleaning. The valve is opened without shutting off the flow or disassembling the strainer, as the flow through the pipe will flush out the solids in the screen

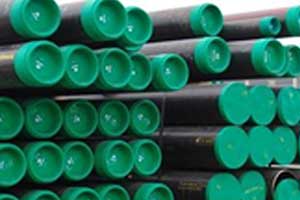

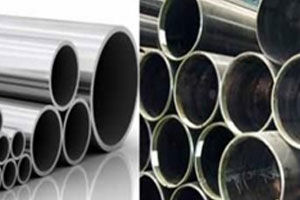

Carbon steel is a metal alloy. It is a combination of two elements, iron and carbon. Other elements are present in quantities.
Carbon steel is a metal alloy. It is a combination of two elements, iron and carbon. Other elements are present in quantities too small to affect its properties.
| A53 grade A + grade B | P235 |
| A106 grade B + grade C | P265 Wst. 1.4301 |
| A333 grade 3 + grade 6 | P265NLWst. 1.4401 |
| API 5L grade B / X42 /X52 /X60 / X65 /X70 | P355 - P460 Wst. 1.4541 |

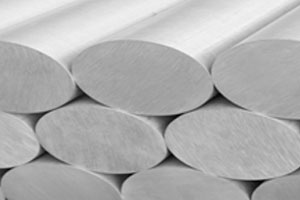

Most commonly, the phrase "alloy steel" refers to low -alloy steels. The following is a range of improved properties in...
Most commonly, the phrase "alloy steel" refers to low -alloy steels. The following is a range of improved properties in alloy steels as compared to carbon steels. Strength, hardness, toughness, wear resistance, corrosion resistance, hardenability, and hot hardness.
| A335 grade P1 | 16 Mo3 |
| A335 grade P5 | 13CrMo45 |
| A335 grade P9 | 10CrMo9-10 |
| A335 grade P11/P 12 | X10CrMoVNb9-1 |
| A335 grade P22 | |
| A335 grade P11/P 12 |
A type of metal product that is more resistant to rust, staining & corrosion than regular steel. It is an alloy of iron
A type of metal product that is more resistant to rust, staining & corrosion than regular steel. It is an alloy of iron & carbon. Stainless steel is often found in materials used in construction & tools.
| 304, 304L | Standard 18/8 grades |
| 310, 310S | High temperature resistant grades |
| 316, 316L | Improved resistance to pitting corrosion in chloride environments |

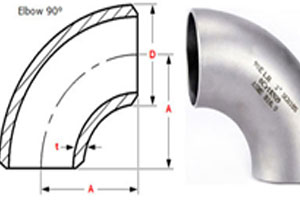

An elbow provides a change in material flow direction. This adds pressure losses to the system due to impact, friction
An elbow provides a change in material flow direction. This adds pressure losses to the system due to impact, friction and re-acceleration. As product enters the inlet of the elbow, it typically continues moving staright ahead to the first impact zone. The product is then deflected at an angle toward the outlet of the elbow. The deflection angle is determined by the elbow design the product's characteristics, the conveying velocity, and specific load.
| Elbows | ANSI B16.9 / MSS-SP75 | DIN2605 Teil 1 / Teil 2 |
| Types | 45 DEGREE 90 DEGREE 180 DEGREE |
|
| GRADE | ANSI B16.28 | WPB / WPL 6 |
| Radious | SHORT RADIOUS | LONG RADIOUS |

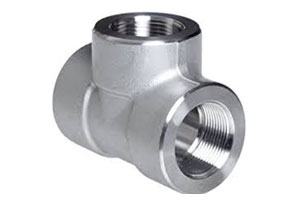

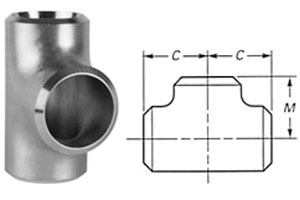

Tee is a forged fitting used for splitting and changing flow direction of run pipe. Tee can be manufactured with
Tee is a forged fitting used for splitting and changing flow direction of run pipe. Tee can be manufactured with butt weld extremities,socket extremities or threaded extremities. Tees are in two types:
Equal Tee :The primary purpose of a Tee is to make a 90° branch from the main run of pipe. The equal tee (or straight tee) is used as the branch has the same diameter as the run-pipe.
Reducing Tee : The reducing tee is used as the branch has a smaller diameter as the run-pipe.
| Tees | ANSI / MSS | DIN2615 Teil 1 / Teil 2 |

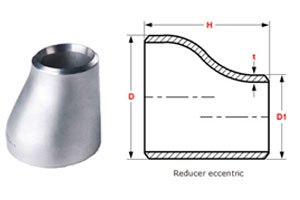

A reducer is the component in a in a pipeline that reduces the pipe size from a larger to asmaller bore (inner diameter)......
A reducer is the component in a in a pipeline that reduces the pipe size from a larger to asmaller bore (inner diameter). The length of the reduction is usually equal to the average of the larger and smaller pipe diameters. There are two main types of reducer: concentric and eccentric reducers.
Concentric Reducers : The concentric reducer is cone-shaped, and is used when there is a shift in diameter between pipes. For example, when a 1" pipe transitions into a 3/4" pipe and the top or bottom of the pipe doesn't need to remain level. Unlike eccentricreducers, concentric reducers have a common center line.
Eccentric Reducer : An eccentric reducer is a fitting used in piping systems between two pipes of different diameters. They are used where the diameter of the pipe on the upstream side of the fitting (i.e. where flow is coming from) is larger than the downstream side.
| Reducers | ANSI / MSS | DIN2615 Teil 1 / Teil 2 |

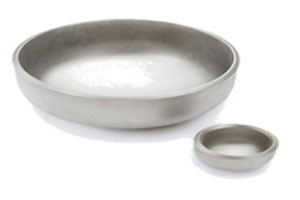

Basically a cap will be applied, to shut down the end of a pipe. It is available for all pipe dimensions. They are used to cl..
Basically a cap will be applied, to shut down the end of a pipe. It is available for all pipe dimensions. They are used to close pipes of large diameters, and are similar to those used for constructing vessels.
| Caps | ANSI / MSS | DIN2617 / DIN28011 |

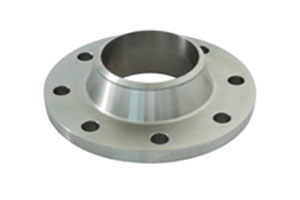

This is designed to be joined to a piping system by buttwelding. It is relatively expensive because of Its long neck,
This is designed to be joined to a piping system by buttwelding. It is relatively expensive because of Its long neck, but is preferred for high stress applications. The neck, or hub transmits stresses to the the base of the hub to the wall thickness at the butt weld, provide important reinforcement of the flange. The bore of the flange matches the bore of the pipe, reducing turbulence and erosion.

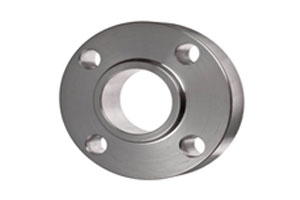

The flange is slipped over the pipe and then welded both inside and outside to provide sufficient Strength and prevent leakage.
The flange is slipped over the pipe and then welded both inside and outside to provide sufficient Strength and prevent leakage. This flange is used in preference to weld necks by many users because of its lower cost and the fact that less accuracy is required when cutting pipe to length.

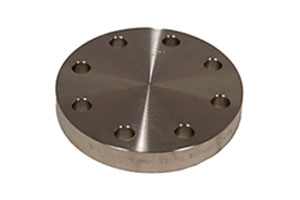

This is a flange without a bore and is used to shut off a piping system or vessel opening. It also permits Easy access to vessels ..
This is a flange without a bore and is used to shut off a piping system or vessel opening. It also permits Easy access to vessels or piping systems for inspection purposes. Blind flange can be supplied with or without hubs at the manufacturers option.

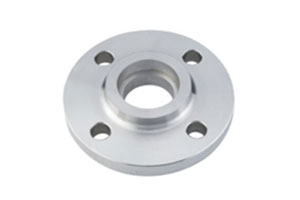

his is similar to a slip-on flange in outline, but the bore is counter-bored to accept pipe. The diameter of the remaining bore..
This is similar to a slip-on flange in outline, but the bore is counter-bored to accept pipe. The diameter of the remaining bore is the same as the inside diameter of the pipe. The flange is attached to the pipe by a fillet weld around the hub of the flange. An optional interval weld may be applied in high stress applications. It’s biggest use is in high pressure systems such as hydraulic and steam lines.
This is again similar to a slip-on flange, but it has a radius at the intersection of the bore and the flange face to accommodate a ..
This is again similar to a slip-on flange, but it has a radius at the intersection of the bore and the flange face to accommodate a lap stub end. The face on the stub end forms the gasket face on the flange. This type of flange is used in applications where section of piping systems need to be dismantle quickly and easily for inspection or replacement.

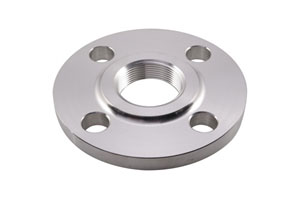

This is similar to a slip-on flange in outline, but the bore is threaded, thus enabling assembly without welding.
This is similar to a slip-on flange in outline, but the bore is threaded, thus enabling assembly without welding. This obviously limits its application to relatively low pressure piping systems. The flange may be welded around the joint after assembly, but this is not considered a satisfactory method of increasing its applications.
| A105 | C21, C22.8 | EN10222-2 |
| A182 F304 | (L/H) UNS S30400 | WSt. 1.4301 | EN10222-5 |
| A182 F316 | (L/H/Ti) UNS S31600 | WSt. 1.4401 | EN10222-5 |
Owing to our rich industrial experience, we are offering a comprehensive range of Long Weld Neck Flanges.
Owing to our rich industrial experience, we are offering a comprehensive range of Long Weld Neck Flanges. The professionals of our organization source these neck flanges from trusted vendors. These flanges are unique due to their simple connectivity with other pipes. Moreover, our products are extensively used in refining industries for linking purposes. Our esteemed patrons can avail these qualitative range of flanges from us at industry-leading prices.
| A105 | C21, C22.8 | EN10222-2 |
| A182 F304 | (L/H) UNS S30400 | WSt. 1.4301 | EN10222-5 |
| A182 F316 | (L/H/Ti) UNS S31600 | WSt. 1.4401 | EN10222-5 |

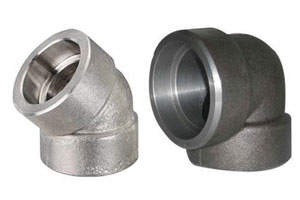

An elbow is a pipe fitting installed between two lengths of pipe or tubing to allow a change of direction,
An elbow is a pipe fitting installed between two lengths of pipe or tubing to allow a change of direction, usually a 45° or 90° angle.

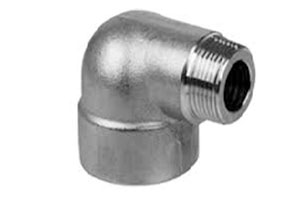

A street elbow is a type of plumbing or piping fitting intended to join a piece of pipe and another fitting at an angle.
A street elbow is a type of plumbing or piping fitting intended to join a piece of pipe and another fitting at an angle.
The bodies of fittings for pipe and tubing are most often the same base material as the pipe or tubing connected
The bodies of fittings for pipe and tubing are most often the same base material as the pipe or tubing connected copper, steel, PVC.

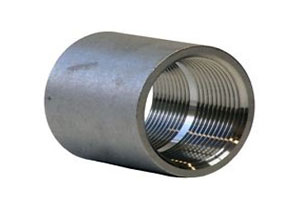

A coupling is a very short length of pipe or tube, with a socket at one or both ends that allows two pipes or tubes to be joined,
A coupling is a very short length of pipe or tube, with a socket at one or both ends that allows two pipes or tubes to be joined, welded together.

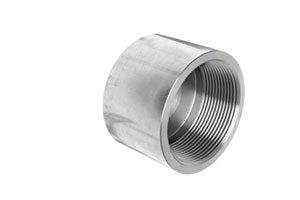

Caps act as a protective device and are designed to protect pipe ends of various shapes. The main purpose of using pipe caps
Caps act as a protective device and are designed to protect pipe ends of various shapes. The main purpose of using pipe caps is to waterproof the connections. They are also used to close the ends of pipes and tubes. They are used in the plumbing apparatus of domestic, commercial and industrial water supply lines, machinery and processing equipment etc. They are also fitted on water pump lines with the sole purpose of removing air blocks. Pipe caps are highly demanded as an important category of pipe fittings.

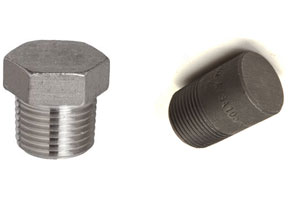

Pipe plugs are defined as cap end of fractional tubes. These pipe plugs are designed to insert into the end of tubing
Pipe plugs are defined as cap end of fractional tubes. These pipe plugs are designed to insert into the end of tubing to dead-end the flow.

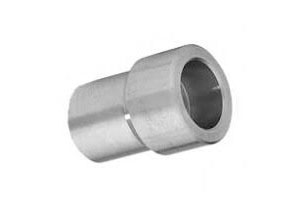

Steel Reducer Inserts are widely used in various engineering, piping and construction works. The Reducer Insert Fitting
Steel Reducer Inserts are widely used in various engineering, piping and construction works. The Reducer Insert Fitting also support the standard socket welding fittings for making combination of pipe line reductions in a much quicker and economical manner.

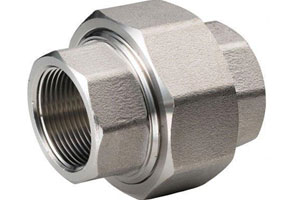

A union, similar to a coupling, allows the convenient future disconnection of pipes for maintenance or
A union, similar to a coupling, allows the convenient future disconnection of pipes for maintenance or fixture replacement. In contrast to a coupling requiring solvent welding, soldering, or rotation (for threaded couplings), a union allows easy connection and disconnection, multiple times if needed.

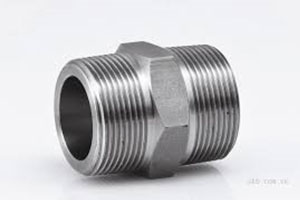

In plumbing and piping, a nipple is a fitting, consisting of a short piece of pipe, usually provided with a male pipe thread at
In plumbing and piping, a nipple is a fitting, consisting of a short piece of pipe, usually provided with a male pipe thread at at each end, for connecting two otherfittings. The length of the nipple is usually specified by the overall length with threads.

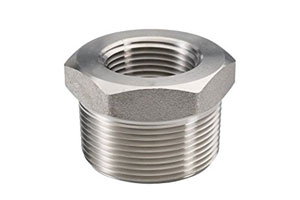

BUSHINGS : A pipe fitting used to join two pipes of different sizes. A bushing is threaded inside and out.
BUSHINGS : A pipe fitting used to join two pipes of different sizes. A bushing is threaded inside and out. A type of backflow preventer installed in a pipe run that allows water to flow in only one direction.
